Background and current market status


Damage from localized torrential downpour	Damage from earthquake

Damage from oil leak	Aged building / super-tall skyscraper

Essential elements of life...
Water, oil, various chemical solutions, etc.

However,
they can theaten us.

· Natural disaster
: Global warming (desertification/localized downpour),
flood, earthquake and tsunami, river flood, water deficiency, etc.

· Manmade hazard
: Water / soil / air contamination due to chemical solution or gas, etc.

· damage to building, facilities
: Increased risk due to super-tall skyscrapers, reduced concrete strength, increased aging speed, etc.

Did you know?

Water leak accounts for 27% of the cause for gas, electricity, and water stop from ‘innovation of water leak detection technology’
on AUTOMATED BUILING.COM (US)

Mandated defect warranty system for apartment buildings in Korea!!
Building performance rating system / Building owner’s repair deposit system (3%) / probability of water leak (46%)

Classification		Details Damage Pattern	Generation Number (%)
Classification		Details Damage Pattern	2003	2004	total
Tectonic Fault (141, 100%)	Structure (81, 57.5%)	Water leak	20	26	46(32.6)
		Dew condensation	6	10	16(11.4)
		Windows and door	4	6	10(7.1)
		Crack, wall flaw	7	2	9(6.4)
	Building equipments fault (34, 24.1%)	Bathroom, sanitary arrangements	4	7	11(7.8)
		Plumbing system(pipe)	2	11	13(9.2)
		Gas , Kitchen equipment	1	2	3(2.1)
		Parking lot facilities	2	1	3(2.1)
		Heating facilities	-	2	2(1.4)
		Elevator facilities	1	1	2(1.4)
	Finishing (Materials) fault (26, 18.4%)	Flooring	3	7	10(7.1)
		Furniture	4	1	5(3.5)
		Paper, wallpaper	3	2	5(3.5)
		Glass	2	2	4(2.8)
		Lighting Fixture	1	-	1(0.7)
		Option Product	-	1	1(0.7)

House quality assurance system [house performance rating system]
· Constructors must receive evaluation on the house performance by an authorized agency and present it in the announcement for inviting residents
· Supplying 1000 or more houses, and the evaluation includes 20 items in 5 areas including noise, structure, environment, living environment,
fire / fire-fighting

Strict regulations by Ministry of Environment
[Soil Conservation Act, Safety Control of Dangerous Substances Act, Greenhouse Gas Emission Control Act]

U.S.N market expansion with enforcement of U-CITY Act[Sep.2008]

Climate change due to global warming & carbon emission regulations [localized torrential rain 900mm or more / day]

Focused safety management of buildings & facilities!!

With economic development, the government and public has increased awareness of safety.
FLOWTECH CO., LTD. provides the top service for clients to protect their properties and safety.

Business areas

BUSINESS FELD		FMS[facility safety management system]
		Electronics[various manufacturing FAB including semiconductor, LCD, LED, solar power, etc.] IT Industry[computer room, data center, network center, wireless communication base stations.] Construction industry[U-CITY houses, buildings, intelligent buildings]
		SENSOR
		Film-typefluid leakage sensor network Film-typewater leakdistance derection sensor Film-typeoil leaksimple sensor Outdooracid leakdistance sensor Explosion-proof film liquid leak sensor Electrostatic capacityfilm-typelevel sensor Monitoring server and software[UI]

Core Technologies of FLOWTECH CO., LTD.

World's first film-type liquid [water leak, oil leak] sensor
[Patented in Korea and elsewhere, PCT registered]

Film + Circuit Technology	Sensor film applied products	Electro-conductive ink mixing technology	Gravure printing technology
· Electro-conductive liquid detection circuit · Oil detection circuit · Heating circuit · RF Tag antenna circuit · Level / proximity sensor circuit	· Special Gravure facility · Print mold design, production · Circuitresistance control	· Silver or Carbon + Resin + mix of special additives[a] · Improvement of eletrical conductivity. adhesiveness, anti-corrosiveness, etc	· Heating sensor film · Oil detection sensor film · RF-TAGfilm · F-PCB alternative film · Fire detection sensor

Water/chemical liquid detection sensor

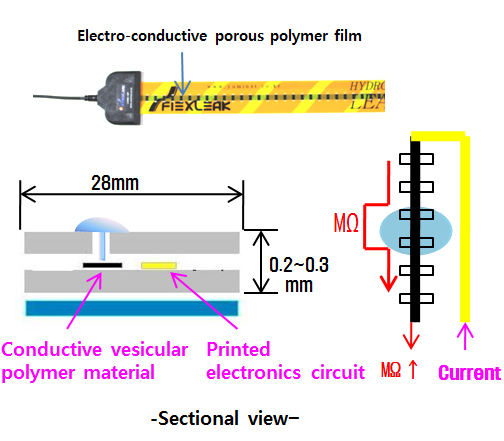

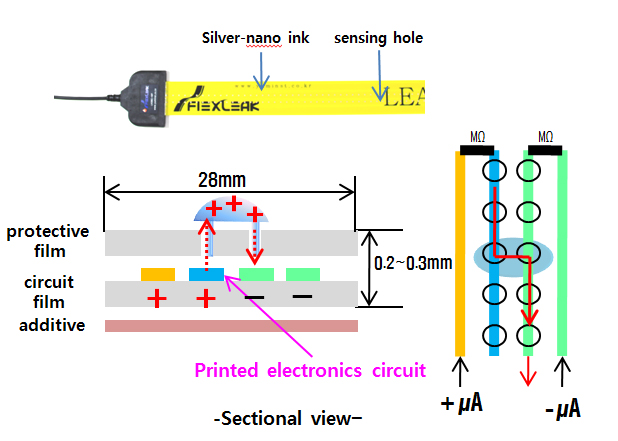

Advantages og film-type water leak sensor


easy installation	Easy to cut and possible to reassemble!	free movement of worker / vehicle	Easy to finish alarm by simple cleaning up	Cusromized mark printing available	competitive price

Comparision with other companies' products

FLOWTECH CO., LTD. film-type water leak sensor can be installed anywhere without limitation, and can replace all types of water leak sensors at a lower price. The shorter length covers the point sensor, and the longer one covers the cable/ metal band sensor area, and it can be easily installed on wall, floor, machine, as well as pipes without additional bracket as it is adhesive.

		FLOWTECH CO., LTD. [Korea]	Rivals-1 [France]	Rivals-2 [USA]	Rivals-3 [Japan]
Product image
Sensor type		Surface type / Film type	Cable type	Cable type	Cable type
Bracket		Not reguired [Adhesive film on the back of the sensor]	Reguired	Reguired	Reguired
Reusability		O	X	X	X
Durability against pressure		O	X	X	X
Oil detection		O	O	X	X
Response Time	General liquid	1sec ~ 3sec	10sec ~ 30sec	10sec ~ 30sec	10sec ~ 30sec
Response Time	Oil	1Min ~ 10Min	30Min ~ 3Hr	30Min ~ 3Hr	X
Minimum amount for liquid detection	General liquid	More than 1ml	More than 20ml	More than 20ml	X
Minimum amount for liquid detection	Oil	5ml ~ 10ml	50ml ~ 100ml	50ml ~ 100ml	X
Applicability		O	X	X	X

Film Sensor


LK08-T1-ST	LK08-T1
Water / chemical detection sensor film [simple sensor] 100M = 1Roll, Maximum 200M can be connected for one module	Water / chemical detection sensor film [distance detection sensor] 100M = 1Roll, Maximum 200M can be connected for one module

LK08-T1-1000	LK08-T1-2000
Water / chemical detection sensor film [outdoor sensor] 100M = 1Roll	Oil detection Sensor Film 100M = 1Roll

Specifications

Classification	Detailed Items
Model Name	LK08-T1-ST / LK08-T1 LK08-T1-1000 / LK08-T1-2000
Raw material	PET
Circuit	Nano silver thin circuit
Circuit Thickness	0.5 ~ 1μm
Film Thickness	Base Film : 100 ~ 150μm Cover Film : 100 ~ 150μm
Connecter	PBT
Usual Temperature	-10 ~ +90℃
Usual Humidity	35 ~ 85%
Weight	Below 100g
Input Voltage	+5V

Modules

1. Slave

	LK08-C1-1CH-B		LK08-C1-1CH-N
	· 1CH Sensor modules · LK08-T1-ST-2L interlock · LED [Red-water leak, Yellow-cut] · Relay[NO], Buzzer output · Cut detection		· 1CH Sensor modules · LK08-T1-ST-2L interlock · LED [Red-water leak] · Relay[NO], Buzzer output · No cut detection
	LK08-C1-5CH-B		LK08-C1-5CH-N
	· 5CH Sensor modules · LK08-T1-ST-2L interlock · LED [Red-water leak, Yellow-cut] · Relay[NO], Buzzer, RS-485 output · Cut detection		· 5CH Sensor modules · LK08-T1-ST-2L interlock · LED [Red-water leak] · Relay[NO], Buzzer, RS-485 output · No cut detection
	LK08-C1		LK08-C1-HDC01
	· 1CH Sensor modules · LK08-T1 interlock · LCD · LED [Red-water leak, Yellow-cut] · Relay[NC, NO],Data Memory, parameter setting, buzzer, RS-485 output · Water leak location output		· Oil Sensor modules · LK08-T1-2000 interlock · LCD · LED [Red-water leak] · Relay[NC, NO],Data Memory, parameter setting, buzzer, RS-485 output

Specifications

Classification	Detailed Items
Model Name	LK08-C1 / LK08-C1-1CH LK08-C1-5CH
Input Voltage	12V - 24V [DC]
Current Consumption	Below 6W
Output	Relay [NC, NO] / RS-485
Response Time	Below 50ms ~ 10s
Alarm Color	Green LED [normal] Yellow LED [service] Red LED [leakage] LCD display of distance [M]
Usual Temperature	-10 ~ +90℃
Usual Humidity	35 ~ 85%
Sensor length	Mark 100 ~ 200m
Accuracy	Below ±1%
Weight	Below 100g

2. Master

	LK08-MC200
	It includes a master module for modus communication with PC, BMS, FMS, etc., and one LK08-C1, and can be connected to 199 slave modules. *RS-485 / RS232 / Relay(COM, NC, NO) / Buzzer / 20x4 LCD

Construction industry : Used for APT / Houses

Construction field	Electronics industrial field	Facility industry field

Underground pipe for several installations	Supply facilities of several chemical solutions

In the neighborhood of facilities in buildings	Several chemical solution facilities	Chemical and petrochemical

I.T field			Chemical industrial field

Internet Data Center	Computer room	Base station for mobile communication	Chemical and petrochemical

Thermal power/Nuclear power plant, etc.		Heavy industry field

Power exciter	Nuclear power/ Thermal power cooling water	Shipbuilding field	Steel field

Smart Building & Smart Plant

	2) Ground:
	1) Underground:
	Equipment room, oil storage room, communication/computer room, document storage room, etc
	Various record rooms, surrounding heating facilities, executive room, building central control room, bathroom, etc
	3) Rooftop:
	Air conditioning/cooling equipment room, water tank, service vertical plane

	※ Installation location for smart plant water leak(liquid) sensor
	· Plenum[floor] for each floor
	· Around electrics and equipment room
	· Inside the CCSS room
	· Various dangerous fluid pipe and surrounding area
	· Inside the fluid facility[WET facility]
	· Other important spaces [computing room, executive suite, UPS room, air conditioning room, etc.]
